Mazda Protege Engine Management

Fuel Cut Defenser - Experiencing fuel cut with your boosted Protege? This kit will allow you to run increased boost without hitting the dreaded "fuel cut".

Instructions:

PLEASE NOTE- The FCD unit will raise your vehicles fuel cut psi, which is a safety feature designed into the ECU mapping to protect the vehicle from over boosting and causing engine damage. Installation of this unit removes the safety cap and will allow you to overboost your engine. Installation is recommended only by those qualified to alter the vehicle from it's stock form. With this in mind, these instructions are written to give only enough information for an experienced tuner/installer to understand.

The FCD unit hooks between the MAF signal wire and a ground and requires a boost source to switch it on and off. There are two ways to tap the MAF line- one is at the ECU pin 88 and the other is at the MAF sensor pin B- either will work. Tap one wire from the FCD unit to the signal line (the FCD is not polarized, so either wire will work) and the other wire to a good ground. It is preferred that the signal wires be soldered. Once the wiring is completed, run an 1/8" hose from a vacuum pressure source to the fitting on the FCD.

The FCD utilizes a boost switch to activate it which is adjustable. It should be good where it is set, but you may notice that if you go WOT in say 4th gear at 2000 rpms and slowly lug it through the powerband, it may lean out when hits the preset psi and the switch kicks in, or some cars may feel a quick, slight stumble when it kicks in at higher RPM's- this is normal and you can adjust it to raise the psi at which it kicks in to help smooth it out- I can not preset them to work perfectly for every car (come in at the exact time your specific car would need it). Adjustment is easy- if you look at the FCD, you will see an allen screw which requires a 2mm allen wrench- turning the screw clockwise will cause the FCD to kick in at higher boost levels. Note- this does not affect the PSI/airflow at which fuel cut will occur- it will only increase the PSI at which the switch is mechanically activated. If you tighten this screw too much, the switch may not kick on until after the factory fuel cut threshold, which cause the vehicle to fuel cut- so it is recommended you leave it at the factory setting.

DISCLAIMER- THE BUYER IS RESPONSIBLE FOR PROPER INSTALLATION OF THIS PRODUCT. ALTERING ANY VEHICLE FROM IT'S STOCK CONFIGURATION CAN BE DANGEROUS AND/OR CAUSE FAILURE. IF YOU FEEL YOU ARE UNABLE TO SAFELY COMPLETE THIS INSTALLATION, YOU MAY WANT TO CONSIDER BRINGING THE VEHICLE TO A PROFESSIONAL OR CONTACT US FOR FURTHER ASSISTANCE.

SpeedCircuit is not LIABLE FOR ANY DAMAGES OR INJURY DUE TO USING THIS PRODUCT

This is a pre-owned ECU from a manual transmission 3rd generation 2.0L non-MSP Mazda Protege. These are typically used when running a piggyback computer on a Mazdaspeed Protege. This ECU is plug and play, and will not throw any check engine lights when installed to your Mazdaspeed Protege. The advantage of running this ECU on an MSP with a piggyback spark and fuel controller is the fact that it has a much more linear base map which has a leaner air:fuel ratio and a more predictable timing map. This allows you to add fuel in a straightforward manner with an additional injector setup, and allows you to make more straightforward timing modifications with the piggyback computer.

This is a pre-owned ECU from a MazdaSpeed Protege.

Simplify your life with this Plug & Play harness for your Haltech standalone ECU!

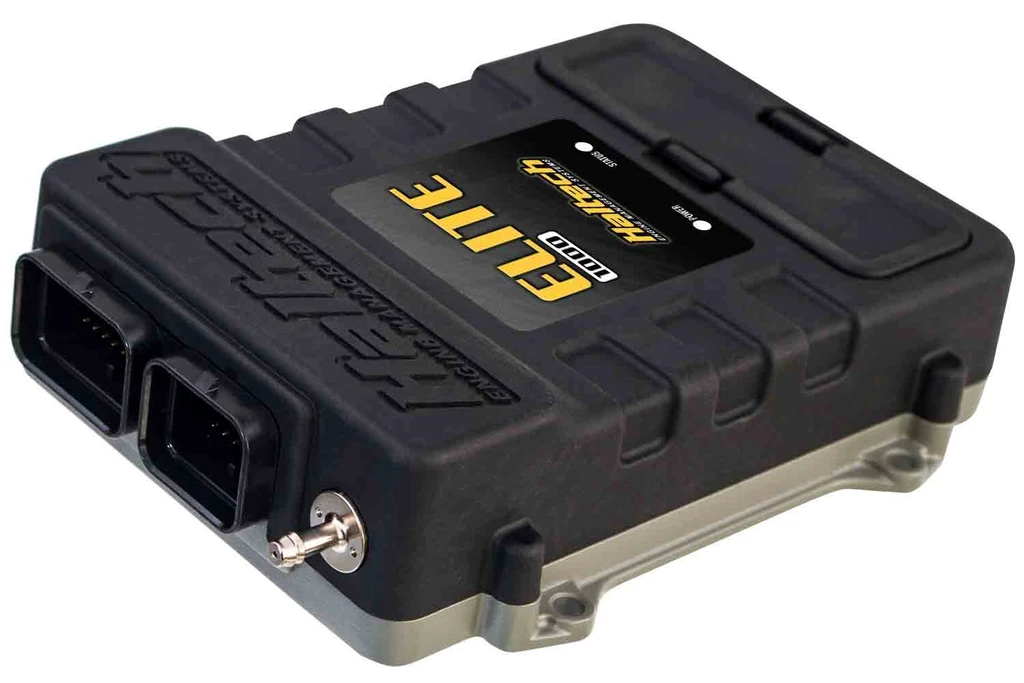

Don't waste days of your life mapping and pinning a wiring harness for your new Haltech Elite 1000 and 1500 standalone ECU. Your prayers have been answered with this plug and play solution from Boomslang!
